DPXR8A-16 Raritan 8 Port 19" Horizontal PDU. Outlet-level Remote Power Management and Control Over IP ( Serial and IP Contol PDU ) prev. DPCR8A-16
Description:
1U standard rack mount Remote Power Control strip with 8 outlets, 230 Volts AC, 16 Amps, IEC60309 16A plug type, and IEC320 C13 receptacle type. Intelligent Power Distribution Unit (PDU) to reboot remote servers and network devices, and monitor power in the data center through Raritan's KVM switches, secure console servers, and CommandCenter Secure Gateway.
See the Summer power PDU Offers on the 8 port from us now. Call for details
The Dominion PX is an intelligent Power Distribution Unit (PDU) that allows users to reboot remote servers and network devices and monitor power.
It can be used as a standalone power distribution unit, or integrated with Raritan’s KVM switches and Secure Console Servers.
A flexible, next-generation power management solution
Raritan's Dominion PX remote power management devices allow IT administrators to securely reboot and power on/off servers and network devices from a remote location.
In addition, users can monitor power usage down to the outlet level, enabling highly accurate power metering.
Whether used as a standalone unit or integrated with Raritan access solutions, the Dominion PX also offers flexible and secure access with 256-bit AES encryption, flexible management interface support for HTTP, HTTPS, IPMI, SMASH CLI, SSH and SNMP, as well as user-configurable power sequencing. Environmental monitoring options are available.
The Dominion PX enables remote power cycling of network servers and devices. However, the Dominion PX also offers additional incremental value such as outlet-level power monitoring, access via Ethernet/IP and serial, AES encryption for remote access, an intuitive browser-based GUI, and other flexible access methods.

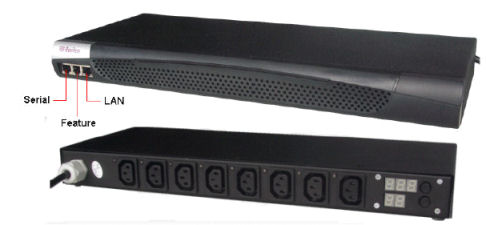

Raritan 8 way horizontal PDU
Features:
Intelligent remote power monitoring and control
�� Outlet-level RMS metering
�� Intuitive Browser-based Management
�� Large LED display provides per-outlet metering
�� User configurable power sequencing
�� User-defined thresholds at unit and outlet levels
�� Remotely power on/off and reboot devices
�� Outlet grouping and IP clustering*
�� Sensors for temperature monitoring available*
�� Receptacle status retained during power loss,
restoring power only to receptacles that were on
before the outage
Communications and security
�� Standard unit comes with both serial (RS232)
and 10/100BaseT Ethernet
�� Industry-leading 256-bit AES encryption
�� Supports DHCP, static IP, and BOOTP
�� HTTP/HTTPS
�� IPMI 2.0 and SMASH CLI
�� SSH and Telnet
�� SNMP alerts, SNMP control*, SNMP MIB
�� Alerts via e-mail SMTP, SMS - via external
SMS gateway and SNMP traps
�� Simultaneous IP and serial access
�� Self contained authentication
�� Per outlet authorization
�� LDAP/S, Active Directory®, RADIUS,
and CommandCenter® Secure Gateway
�� Easy firmware upgrades via IP
Integrated power management with Raritan Access and Management Solutions
�� Integrated authorization and control with Paragon II, Dominion SX, Dominion KSX, Dominion KX
and CommandCenter® Secure Gateway
�� Can also be used as a standalone power management solution
Specification:
Controllable Receptacles 8
Input Voltage 230 VAC
Maximum Amperage 16 Amps
Rack Space 1U
1 x Plug Type IEC60309 16A ( Industrial 309 Blue )
8 x Outlet Receptacles Type IEC320 C13
Dimension (WxDxH) 440 x 169 x 43mm
Weight 3,64 kg
Agency Approvals:
�� US & Canada cTUVus (fully compliant to UL 60950-1 Rev.3)
�� FCC Class A, Part 15
�� European Union EN 55022, Class A
�� EN 55024
�� EN 60950-1
�� CE mark
�� C-Tick
�� RoHS/WEEE compliant
�� PSE certification pending
For access using a web-browser, the Dominion PX does not require any software to be loaded on the client; however the browser does have to be Java enabled. When using SSH/Telnet, the customer has to provide an SSH/Telnet client. In some operating systems, like Linux, an SSH client is included in the distribution. Also, OpenSSH.org has an SSH client that can be downloaded free of charge. Putty is one of the most popular SSH clients for Windows, and it can also be downloaded free from the Internet.
1U including power cord 1,80m (6 feet)
CD(FW,manual, QSG, company information)
Registration Card
Brackets for 1U + Screws
Dryer granules
Cable tie for powercord
White foam end cap inserts (2off)
inner box for accessory packaging
Null modem cable from RJ45 to DB 9
QSG
Product ID (device)
Label intem
labels for accessory cable
If connecting with the Dominion or Paragon range of KVM Switches a Power CIM adaptor ( Not included with product ) is required at additional cost. See part No. P2CIM-PWR.
These items work independently and have an IP RJ45 port and additional Serial interface port only. If using the serial connection additional cabling and adaptors may be required depending on your other devices.
